Kullanılabilirlik Durumu: | |
---|---|
CM-65
EBP INSTRUMENTS
Şangay, Çin
Ayda 200 takım
Önceden tt
1 set

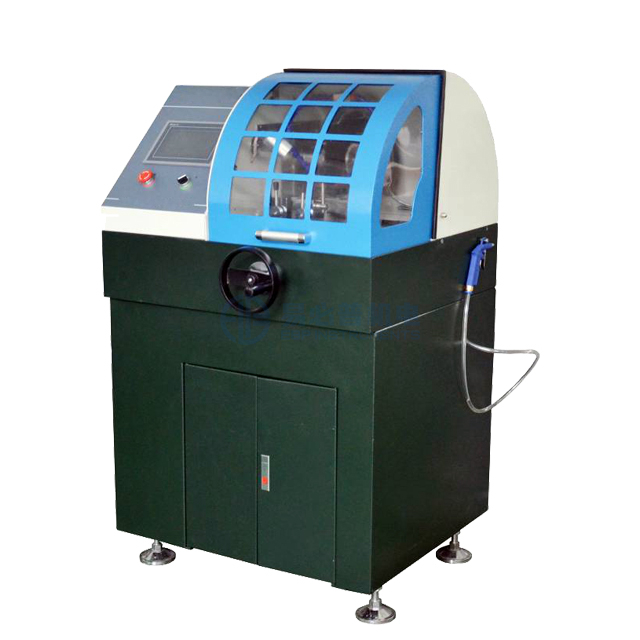

This metallographic sample cutting machine is combined with manual and automatic (PLC control) control, with very high reliability and control ability. For cutting the specimen of the rock or ceramic materials, the diamond cutting disc should be used. CM-65 with low noise, easy to operate, beautiful appearance, safe to use, therefore it is one of the ideal equipment for laboratory sample preparation.
Özellikler:
(1) Free conversion of manual and automatic;
(2) The touch screen displays various cutting data;
(3) Precise positioning;
(4) Cut style cutting, absolute cutting, incremental cutting, three cutting method.
(5) Adopt mechanical and electrical separation design, make the cutting room easy to clean and ensure the safety of spindle motor.
(6) The cutting room security guard cover selects transparent plexiglass material and installs the ventilation fan to increase the working room light and clarity.
(7) The design is more humane, using the principles of ergonomics.
(8) The machine is equipped with a cooling water tank stored of coolant.
Main Parameters:
Model | CM-65 |
Operasyon modu | Manuel / Otomatik, seçmek için ücretsiz. |
Besleme hızı | 3mm / dak, 5mm / dak, 8mm / dak (kullanıcılar, şartlara göre ayarlanan hızı değiştirebilir) |
Y eksen maksimum seyahat mesafesi | 235mm |
Z ekseni maksimum seyahat mesafesi | 35mm (Kesim tarzı) |
Maksimum Kesme Çapı | Φ65mm |
Disk boyutunu kesme | Φ300 × 2 × φ32mm |
Soğutma suyu deposunun kapasitesi | 60L |
Motor | 2.2kw |
Dönen Hız | 500-3000r / dak |
Güç kaynağı | Üç fazlı beş tel 380V, 50Hz |
Dimensions | 800 × 760 × 1370mm |
Ağırlık | 280kg |
